N7150/00; Philips Radios - (ID = 1766705) R-Player

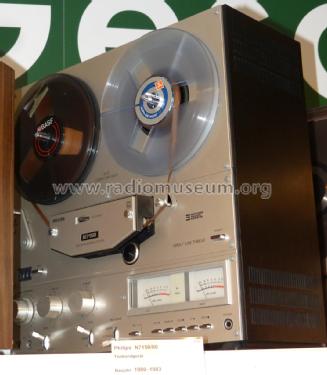

Philips Radios -: N7150/00 [R-Player] ID = 1766705 1294x1220
Select picture or schematic to display from thumbnails on the right and click for download.
For model N7150/00, Philips Radios - Deutschland:
D Philips Deutschland N7150

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1980–1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: N7150/00 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 390 x 210 mm / 15.4 x 15.4 x 8.3 inch
Notes 4-Spur, 4,75, 9,5 und 19 cm/s, 3 Motoren, 3 Tonköpfe, versenkte Andruckrolle, induktive Bandzugregelung, Spulen-Ø 18 cm.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data -- Collector info (Sammler)

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Philips Radios - Deutschland
Here you find 2513 models, 2241 with images and 1532 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
