- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1953/1954
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 19472
-
- Brand: Deutsche Philips-Ges.

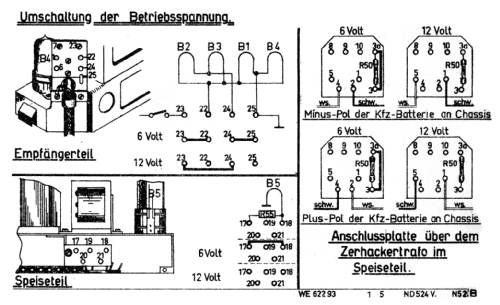

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- ZF/IF 452 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: ND524 - Philips Radios - Deutschland
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 177 x 45 x 170 mm / 7 x 1.8 x 6.7 inch
- Notes
- 4 Drucktasten für festeinstellbare Sender (3 auf MW, 1 LW). Getrenntes Stromversorgungsteil (207×132×93 mm).
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 283.00 DM
- External source of data
- Erb
- Source of data
- Kat.d.Rundf.GrossH.1953/54
