NG-4031

NG-4031; Philips Ibérica, (ID = 2410211) R-Player

NG-4031; Philips Ibérica, (ID = 2410212) R-Player
NG-4031; Philips Ibérica, (ID = 2410210) R-Player
Use red slider bar for more.
NG-4031; Philips Ibérica, (ID = 2410210) R-Player
Philips Ibérica,: NG-4031 [R-Player] ID = 2410210 1042x716
Select picture or schematic to display from thumbnails on the right and click for download.
For model NG-4031, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:
Imagen del manual

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1959 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 127 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: NG-4031 - Philips Ibérica, COPRESA,
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 371 x 84 x 326 mm / 14.6 x 3.3 x 12.8 inch
Notes

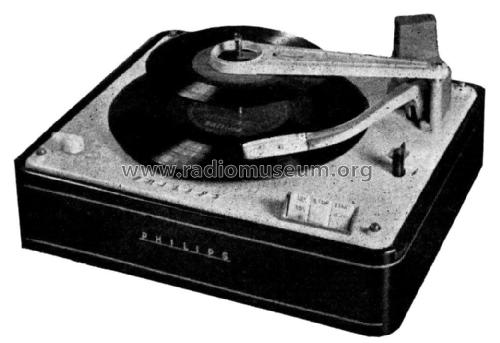

Philips Ibérica; Equipo tocadiscos NG-4031 de cuatro velocidades (16, 33, 45 y 78 r.p.m.)

Este cambiadiscos es el resultante de incorporar una base al modelo AG-1024-95/F

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
