Octode Super 582U-23

Octode Super 582U-23; Philips; Eindhoven (ID = 1023959) Radio Octode Super 582U-23; Philips; Eindhoven (ID = 949186) Radio
Octode Super 582U-23; Philips; Eindhoven (ID = 949189) Radio Octode Super 582U-23; Philips; Eindhoven (ID = 1023961) Radio
Octode Super 582U-23; Philips; Eindhoven (ID = 1023962) Radio Octode Super 582U-23; Philips; Eindhoven (ID = 1023963) Radio
Octode Super 582U-23; Philips; Eindhoven (ID = 1023964) Radio Octode Super 582U-23; Philips; Eindhoven (ID = 1023965) Radio
Octode Super 582U-23; Philips; Eindhoven (ID = 1023967) Radio
Use red slider bar for more.
Octode Super 582U-23; Philips; Eindhoven (ID = 1023959) Radio
Philips; Eindhoven: Octode Super 582U-23 [Radio] ID = 1023959 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Octode Super 582U-23, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner

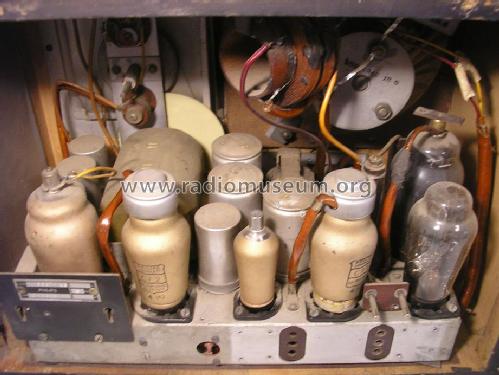

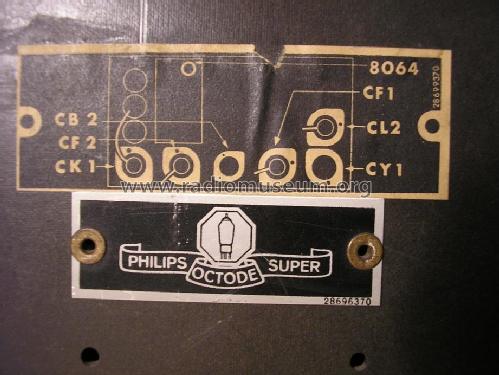

Valves / Tubes 6: CK1 CF2 CB2 CF1 CL2 CY1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Octode Super 582U-23 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Operating voltage unknown.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
