P104

P104 ; Philips Canada (ID = 1708874) Radio P104 ; Philips Canada (ID = 803925) Radio
P104 ; Philips Canada (ID = 803926) Radio P104 ; Philips Canada (ID = 803927) Radio

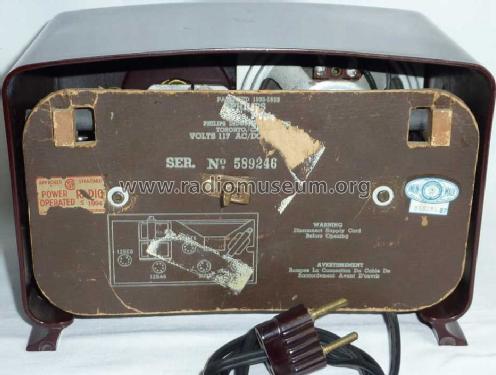

P104 ; Philips Canada (ID = 1708875) Radio P104 ; Philips Canada (ID = 1708877) Radio
P104 ; Philips Canada (ID = 1708878) Radio P104 ; Philips Canada (ID = 1933947) Radio
Use red slider bar for more.
P104 ; Philips Canada (ID = 1708874) Radio
Philips Canada: P104 [Radio] ID = 1708874 933x762
Select picture or schematic to display from thumbnails on the right and click for download.
For model P104, Philips Canada:
Ebay-Verk.: gerhanra141, ArtNr.: 221532887338

Country:  Canada
Manufacturer / Brand:  Philips Canada
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: P104 - Philips Canada
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 215 x 145 x 130 mm / 8.5 x 5.7 x 5.1 inch
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.
