Philetta 12TX1501 /00S /00X /02S /02X /07S /14S Ch= TX-12 II

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 157108

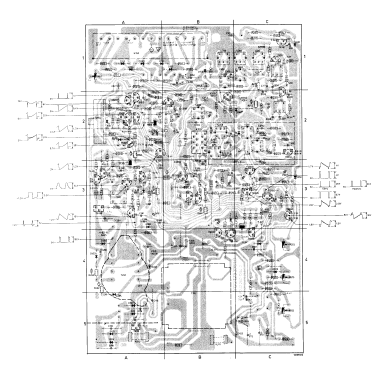

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line / Batteries (any type) / 220/ 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Philetta 12TX1501 /00S /00X /02S /02X /07S /14S Ch= TX-12 II - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 382 x 289 x 300 mm / 15 x 11.4 x 11.8 inch
  • Notes

  • Philips 12TX1501/00S, /00X, /02S, /02X, /07S, /14S

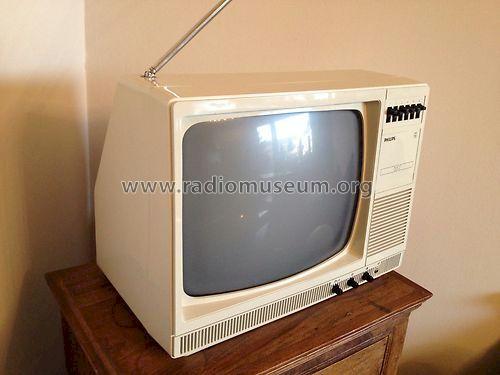

    31 cm B/W TV with CCIR B/G standard VHF/UHF electronic tuner with six presets, 12 VDC in, 27/15 W power consumption, IEC antenna in. 25 diodes, 2 ICs.

    Different cases for /..X (white) and /..S (metallic) types. Different speaker setup for /02 types. Further differences unknown.



  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Price in first year of sale
  • 298.00 DM
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
