BX295U

BX295U; Philips; Eindhoven (ID = 1537120) Radio

BX295U; Philips; Eindhoven (ID = 1537121) Radio

BX295U; Philips; Eindhoven (ID = 1537122) Radio

BX295U; Philips; Eindhoven (ID = 1537123) Radio

BX295U; Philips; Eindhoven (ID = 1537256) Radio

BX295U; Philips; Eindhoven (ID = 1537257) Radio

BX295U; Philips; Eindhoven (ID = 1537259) Radio

BX295U; Philips; Eindhoven (ID = 1537261) Radio
BX295U; Philips; Eindhoven (ID = 1967780) Radio BX295U; Philips; Eindhoven (ID = 2050116) Radio
BX295U; Philips; Eindhoven (ID = 2050117) Radio BX295U; Philips; Eindhoven (ID = 2363246) Radio
BX295U; Philips; Eindhoven (ID = 2050111) Radio BX295U; Philips; Eindhoven (ID = 2050112) Radio
BX295U; Philips; Eindhoven (ID = 2050113) Radio BX295U; Philips; Eindhoven (ID = 2050114) Radio
BX295U; Philips; Eindhoven (ID = 2050115) Radio BX295U; Philips; Eindhoven (ID = 1095669) Radio
Use red slider bar for more.
BX295U; Philips; Eindhoven (ID = 1967780) Radio
Philips; Eindhoven: BX295U [Radio] ID = 1967780 1400x1070

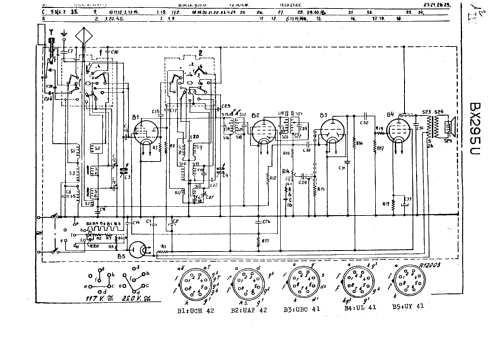

Select picture or schematic to display from thumbnails on the right and click for download.
For model BX295U, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1950 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 117/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: BX295U - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 210 x 160 mm / 9.8 x 8.3 x 6.3 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4977 models, 4169 with images and 3322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: BX295U
Threads: 1 | Posts: 1
Hits: 1600     Replies: 0
BX295U. Ist das ein BX290U "enster"?
Mario Coelho
22.Oct.04
  1 Hallo Radio Freunds

BX290U und BX295U. Ist das sein enster?
Bitte sehen
http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=35289

Grüße
Mário Coelho

Philips; Eindhoven: BX295U
End of forum contributions about this model
