Philetta 54K BD233U-K

Philetta 54K BD233U-K; Philips Radios - (ID = 14838) Radio

Philetta 54K BD233U-K; Philips Radios - (ID = 14839) Radio

Philetta 54K BD233U-K; Philips Radios - (ID = 1022235) Radio
Philetta 54K BD233U-K; Philips Radios - (ID = 40340) Radio Philetta 54K BD233U-K; Philips Radios - (ID = 40341) Radio
Philetta 54K BD233U-K; Philips Radios - (ID = 40342) Radio Philetta 54K BD233U-K; Philips Radios - (ID = 25559) Radio
Philetta 54K BD233U-K; Philips Radios - (ID = 40938) Radio Philetta 54K BD233U-K; Philips Radios - (ID = 305315) Radio
Philetta 54K BD233U-K; Philips Radios - (ID = 512873) Radio Philetta 54K BD233U-K; Philips Radios - (ID = 512875) Radio
Philetta 54K BD233U-K; Philips Radios - (ID = 512877) Radio Philetta 54K BD233U-K; Philips Radios - (ID = 572106) Radio
Use red slider bar for more.
Philetta 54K BD233U-K; Philips Radios - (ID = 40340) Radio
Philips Radios -: Philetta 54K BD233U-K [Radio] ID = 40340 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta 54K BD233U-K, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UC92 UCH81 UF85 UABC80 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 or 468/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Philetta 54K BD233U-K - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 280 x 180 x 140 mm / 11 x 7.1 x 5.5 inch
Notes

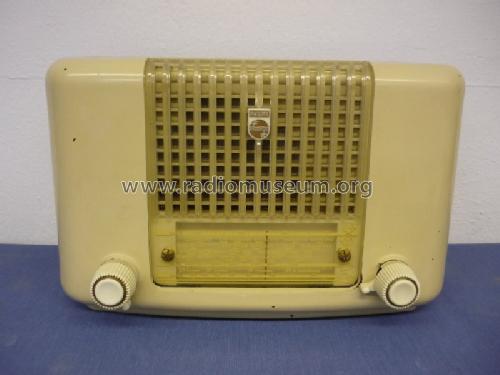

Kurzwellen-Version. Ausführung in braun oder elfenbein-weiss lackiert.
Siehe auch Philips Philetta 54L mit Langwelle.

Preis für die Schweiz 250 SFr.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 189.00 DM
Collectors' prices
External source of data Ernst Erb, HB9RXQ
Source of data Kat.d.Rundf.GrossH.1953/54
Mentioned in Rundfunk- und Fernseh-Katalog 1953/54
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
