Philetta 611 12B611 /00L /00S Ch= T8

Philips - Österreich

  • Year
  • 1976
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 113447

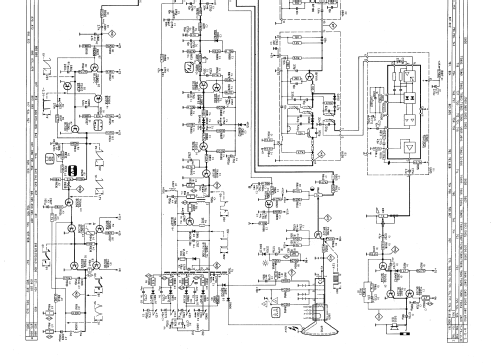

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 31
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 220 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Philetta 611 12B611 /00L /00S Ch= T8 - Philips - Österreich
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 340 x 275 x 240 mm / 13.4 x 10.8 x 9.4 inch
  • Notes
  • 2 verschiedene Chassisausführungen, siehe Schaltpläne.

    Empfangsbereiche: VHF E2-E12 und UHF E21-E69.
    2 Ausführungen: 00/L= rot, 00/S= silber.

    Parallelgerät zum Horny 31T610.

  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
