For model Philetta A BD294U, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH5 UF5 UBL3 UY3
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 117/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Philetta A BD294U - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 280 x 185 x 155 mm / 11 x 7.3 x 6.1 inch
Notes 3 Querstreifen, seitlich nicht gerippt
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 265.00 DM
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4901)

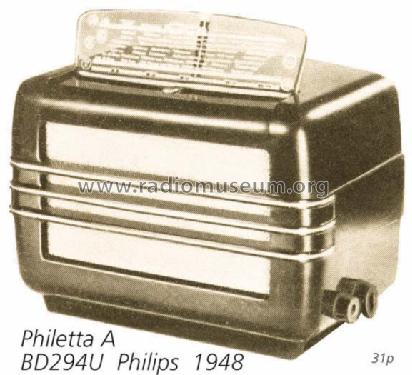

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips Radios - Deutschland
Here you find 2507 models, 2226 with images and 1518 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: Philetta A BD294U
Threads: 1 | Posts: 1
Hits: 1545     Replies: 0
philips: Aufsteckskala BD294U (BD 294 U); Philetta A
Peter Breu
24.Aug.08
  1

Hallo,

suche für meinen BD294U eine Aufsteckskala. Wer weiß wo man ein Repro dieser Skala beziehen kann. Oder wer hat einen guten Scan dieser Skala. Vlt hat jemand auch eine solche skala anzubieten?

Gruß

Peter
