philicorda AG7500

philicorda AG7500; Philips; Eindhoven (ID = 627950) Misc philicorda AG7500; Philips; Eindhoven (ID = 627951) Misc
philicorda AG7500; Philips; Eindhoven (ID = 1482641) Misc philicorda AG7500; Philips; Eindhoven (ID = 1482642) Misc
Use red slider bar for more.
philicorda AG7500; Philips; Eindhoven (ID = 627950) Misc
Philips; Eindhoven: philicorda AG7500 [Misc] ID = 627950 800x558
Select picture or schematic to display from thumbnails on the right and click for download.
For model philicorda AG7500, Philips; Eindhoven (tubes international!); Miniwatt
Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1965/1966 Category: Miscellaneous (Other, Various) - see notes
Valves / Tubes 10: ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECL82 EZ80 ZZ1000 Z70U ZA1001
schematic requested
Main principle Audio-Amplification
Wave bands - without
Power type and voltage Alternating Current supply (AC) / 90; 110; 127; 145; 165; 190; 220; 245 Volt
Loudspeaker - For headphones or amp.
Power out
from Model: philicorda AG7500 - Philips; Eindhoven tubes
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 760 x 170 x 520 mm / 29.9 x 6.7 x 20.5 inch

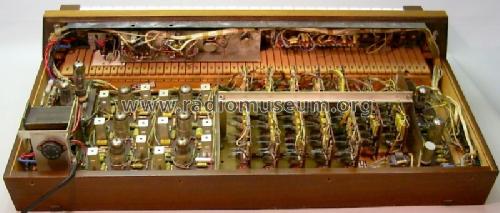

Philips Philicorda, a 49-key electronic organ with tube oscillators and neon tube frequency dividers. Neon tubes: 1x ZZ1000, 3x Z70U, 70 x ZA1001.

The matching two channel audio amplifier with speakers and reverb spring is a separate unit and has model no. AG7600.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Source of data -- Original-techn. papers.

Model page created by Peter Spies. See "Data change" for further contributors.
