• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23188

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF8 EK2 EF9 EAB1 EM1 EF9 EL3 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

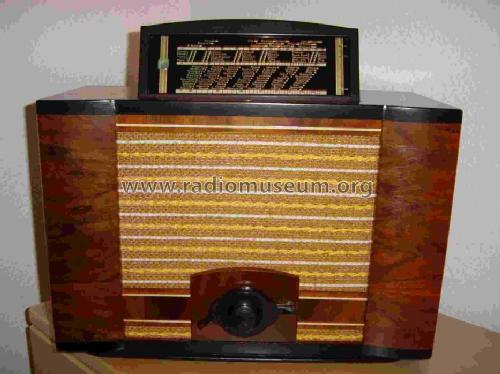

• Model: 752A-14 - Philips akc. spol., Praha-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 545 x 375 x 260 mm / 21.5 x 14.8 x 10.2 inch

• Notes

• Monoknopf, variable Bandbreite.

  Siehe auch Philips 752A aus niederländischer Herstellung.

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
