• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AF3 AF7 AL4 AZ1

• Main principle
• TRF with regeneration; ZF/IF 1 kHz; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

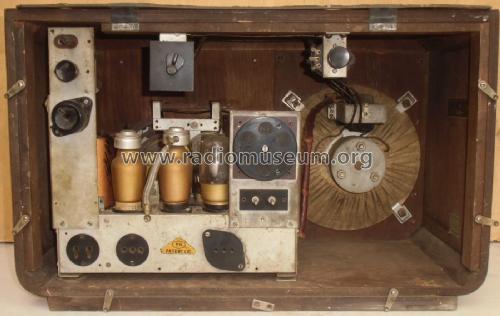

• Model: Gavotta 272A - Philips akc. spol., Praha-

• Dimensions (WHD)
• 540 x 340 x 260 mm / 21.3 x 13.4 x 10.2 inch

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Other Models

• Here you find 150 models, 125 with images and 117 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
