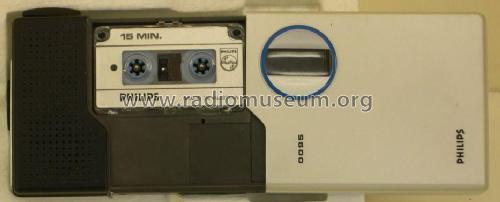

Pocket Memo Special LFH0095

Philips - Österreich

  • Year
  • 1969 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 173799

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Special Tape or Cassette-Format
  • Power type and voltage
  • Storage and/or dry batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 cm = 1.2 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Pocket Memo Special LFH0095 - Philips - Österreich
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 72 x 124 x 26 mm / 2.8 x 4.9 x 1 inch
  • Notes
  • Betrieb mit Philips-Mini-Kassette Typ LFH0002.
  • Net weight (2.2 lb = 1 kg)
  • 0.230 kg / 0 lb 8.1 oz (0.507 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
