Premiere Automatic 22RB484 /00 /62 /72

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 111712) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 111713) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 1823195) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 2362362) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 2362363) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 2407931) Radio

Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 2408079) Radio
Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 165781) Radio Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 1511772) Radio
Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 111444) Radio
Use red slider bar for more.
Premiere Automatic 22RB484 /00 /62 /72; Philips - Österreich (ID = 165781) Radio
Philips - Österreich: Premiere Automatic 22RB484 /00 /62 /72 [Radio] ID = 165781 600x200

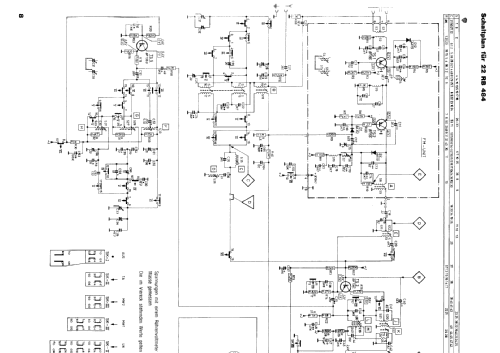

Select picture or schematic to display from thumbnails on the right and click for download.
For model Premiere Automatic 22RB484 /00 /62 /72, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1968–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF195 BF195 BF194 BF194 BF194 BF195 BC149 BC148 AC126 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460 or 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Premiere Automatic 22RB484 /00 /62 /72 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 175 x 154 mm / 21.7 x 6.9 x 6.1 inch
Notes

2 × Mittelwelle, 213 - 586m und 185 - 214m
Sendervorwahl durch 3 Stationstasten auf UKW
4 Ausführungen: /00 = Nuß, /62 = Teak, /72 = Palisander,

Siehe auch Philips 22RB484 /92 in Makoree.

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 2'450.00 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
