Radio Recorder 22AR510 /00

Philips - Österreich

Data

Forum

Pictures

Collections

Country
Austria

Manufacturer / Brand
Philips - Österreich

Year
1981

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
164979

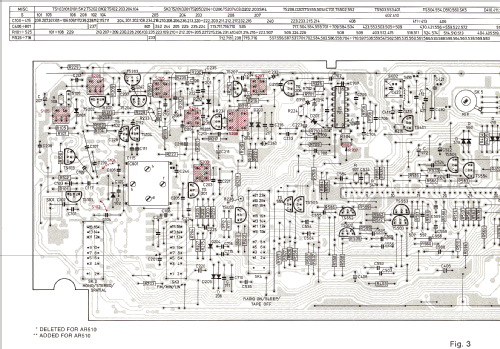

Schematics

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 689996) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 689997) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 689998) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 689999) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594537) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594539) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594540) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594541) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594542) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594543) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594544) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594535) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594546) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594547) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594548) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594549) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594550) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594551) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1594552) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 690000) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (3)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676300) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

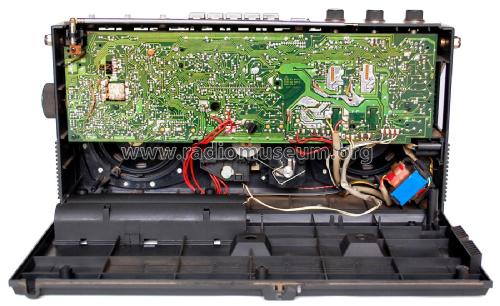

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676548) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676303) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676305) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

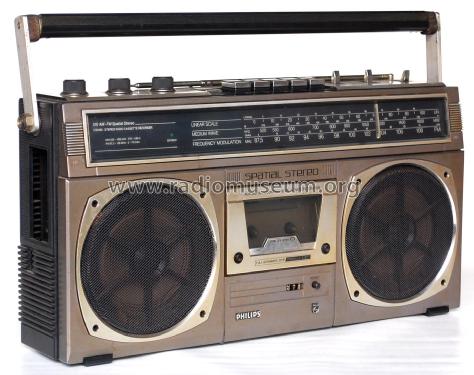

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676301) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676304) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676549) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676302) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2676306) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (2)
Q: Philips, Radio-Katalog '80

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 689994) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (2)
Bild aus Servicedoku.

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 944848) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

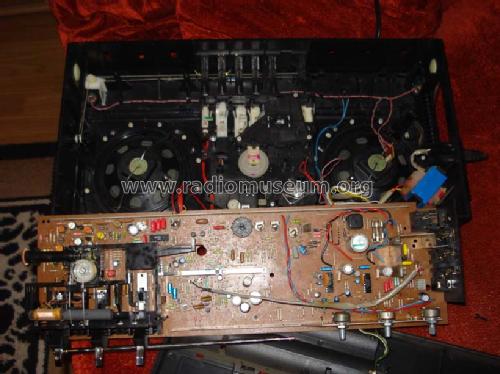

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 946008) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 946057) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 987959) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

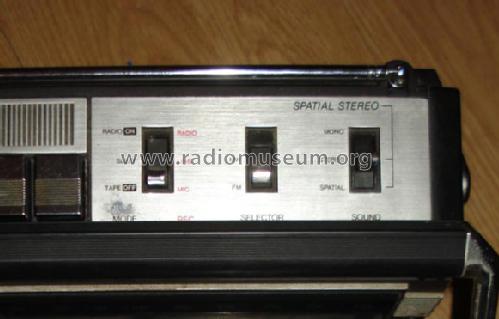

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 987967) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1107213) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1537390) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1537391) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1537392) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1537393) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

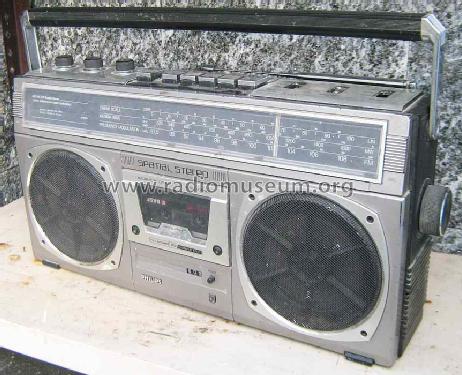

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1537394) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 1747816) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2127898) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (2)
Bild aus Philips Katalog 1981

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2287131) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Radio Recorder 22AR510 /00; Philips - Österreich (ID = 2287132) Radio — Philips - Österreich Radio Recorder 22AR510 /00 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
16

Semiconductors
BF324 BF495 BF451 BC548 BC558 BC549 TDA1905 BA1320 CD4007

Main principle
Superheterodyne (common); ZF/IF 468/10700 kHz

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Line / Batteries (any type) / 110-127; 220-240 / D: 6 x 1,5 Volt

Loudspeaker
2 Loudspeakers / Ø 11 cm = 4.3 inch

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Radio Recorder 22AR510 /00 - Philips - Österreich

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
465 x 245 x 105 mm / 18.3 x 9.6 x 4.1 inch

Notes
See also model 22AR513 with additional LW reception.

Voltage range selection is done by opening the cabinet and turning the internal mains socket by 90°.

Net weight (2.2 lb = 1 kg)
2.8 kg / 6 lb 2.7 oz (6.167 lb)

Mentioned in
Philips - Radio TV and Home Entertainment Catalogs (Philips Katalog 1981)

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Wolfgang Bauer. See "Data change" for further contributors.

Other Models
Here you find 1072 models, 1006 with images and 852 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips - Österreich

Collections | Museums | Literature

Collections

The model Radio Recorder is part of the collections of the following members.

Forum

Forum contributions about this model: Philips - Österreich: Radio Recorder 22AR510 /00

Threads: 1 | Posts: 1

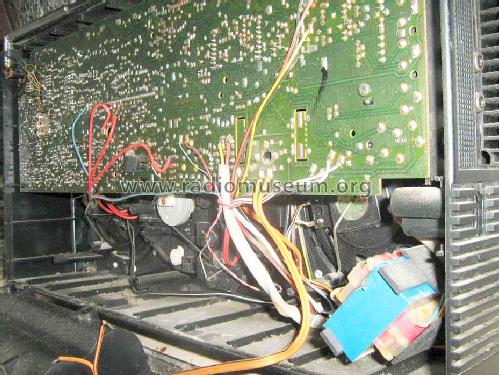

Die Bearbeitung des Kassettenteils ist ziemlich kompliziert :

Zuerst muß die Platine gelöst werden.

Und dann ist es notwendig,,alle 6 Tasten des Kassensteckers abzuziehen und 3 Schrauben des Kassettenteils zu lösen.

Wichig ist auch, die beiden Teile langsam herumzudrehen, damit keine Drähte abgerissen werden.

Ottmar Lauth, 21.May.20
