Radio Recorder RR40 22RR392 /00R /19R

Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2441184) Radio

Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2441185) Radio
Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2441182) Radio Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2441183) Radio

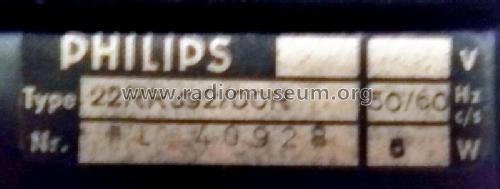

Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2534414) Radio
Use red slider bar for more.
Radio Recorder RR40 22RR392 /00R /19R; Philips Belgium (ID = 2441182) Radio
Philips Belgium: Radio Recorder RR40 22RR392 /00R /19R [Radio] ID = 2441182 1100x797
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Recorder RR40 22RR392 /00R /19R, Philips Belgium (Belgien):
Bild aus eBay-153547829543-emaille-fuer-mich-53

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1970–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: BF195 BF195 BF194 BF195 AC128 BC149 BC149 BC148 AC127 AC128 AC127 AC128 AC126 AC127 AC128 AC127
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radio Recorder RR40 22RR392 /00R /19R - Philips Belgium Belgien
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 335 x 203 x 92 mm / 13.2 x 8 x 3.6 inch
Notes
  • MW 525 - 1605 kHz
  • UKW 87,5 - 104 MHz
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 484 models, 463 with images and 287 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
