4 Band Stereo Radiorecorder 8784 SX8784 /00 /13 /14 /15 /16 /30 /33 /38
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1989 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164606

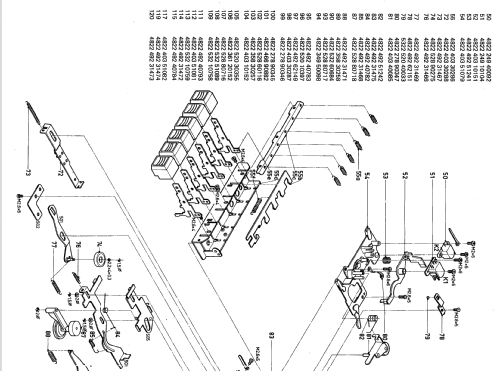

Bild aus Servicedoku.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC: 110-127; 220-240 / DC 12 / D: 8 x 1,5 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4 Band Stereo Radiorecorder 8784 SX8784 /00 /13 /14 /15 /16 /30 /33 /38 - Philips - Österreich
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 410 x 260 x 115 mm / 16.1 x 10.2 x 4.5 inch
- Notes
-
8 Ausführungen: ../00, ../13, ../14, ../15, ../16, ../30, ../33, ../38.
Siehe auch Modelle SX8784 (4 Band Stereo Radiorecorder 8784):
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 1069 models, 1004 with images and 851 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips - Österreich
Forum contributions about this model: Philips - Österreich: 4 Band Stereo Radiorecorder 8784 SX8784 /00 /13 /14 /15 /16 /30 /33 /38
Threads: 2 | Posts: 6
SX8784, Variations:
Philips,
PYE,
Hornyphon,
Mediator,
Schneider.
See photos!
Attachments
Sándor Selyem-Tóth, 10.Jul.22
Dieser Radiorecorder wurde in der Schweiz (wie übrigens viele andere PHILIPS-Geräte) unter der Marke Mediator verkauft, Modellbezeichnung ist ebenfalls SX 8784.
