• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 327426

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details

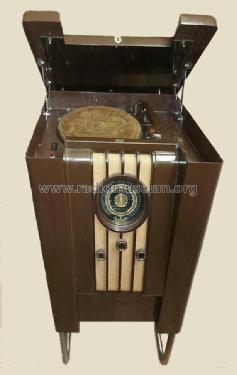

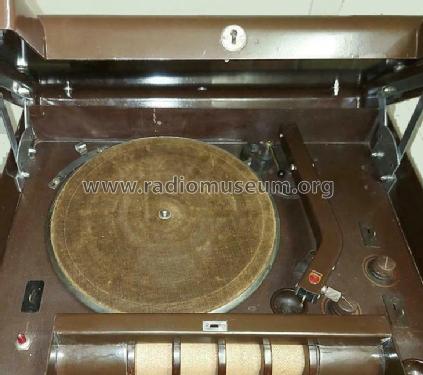

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

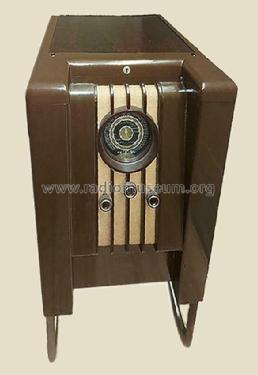

• Model: Radiogrammofoon 2716 - Philips; Eindhoven tubes

• Shape
• Console, Lowboy (legs < 50 %).

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
