• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225795

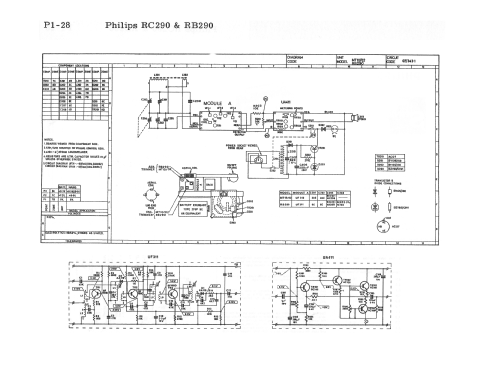

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BF194 BF195 BF195 BC148 AC128 AC187 AC188 AC127 AA119 AA119 BY126 BY126 BZY88

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 240 or 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Leisuremate RB290 - Philips Australia

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 150 x 0 mm / 8.7 x 5.9 x 0 inch

• Notes

• Updated version of Model Parisienne MT10/02.

  Colours available in Red, Brown & Blue.

  Battery: Eveready 276P.

• Price in first year of sale
• 44.45 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1970 to Feb 1971.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Service Manual for Models RB290, MT10/01, RB290 & MT10/02, 1970.)

• Literature/Schematics (2)
• J.R. Publications Transistor Radio Service Handbook (Group G8, 1971/72, Page P1-28.)

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
