RCL Meter PM6303

RCL Meter PM6303; Philips; Eindhoven (ID = 485734) Equipment RCL Meter PM6303; Philips; Eindhoven (ID = 1529826) Equipment
RCL Meter PM6303; Philips; Eindhoven (ID = 1529827) Equipment
Use red slider bar for more.

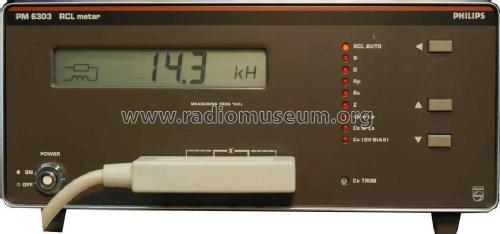

RCL Meter PM6303; Philips; Eindhoven (ID = 485734) Equipment
Philips; Eindhoven: RCL Meter PM6303 [Equipment] ID = 485734 933x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model RCL Meter PM6303, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1988 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle none
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: RCL Meter PM6303 - Philips; Eindhoven tubes
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 140 x 310 mm / 12.2 x 5.5 x 12.2 inch
Notes Auto function and auto range.
Measuring ranges:
R: 0.0 Ohm - 200 MOhm, resolution 1 mOhm
C: 0.0 pF - 100 mF (Cp and Cs), resolution 0.1 pF
L: 0.0 µH - 32 kH (Lp and Ls), resolution 0.1µH
Q: 0.002 - 500
D: 0.002 - 500
Accuracy: ±0.25% ±1 digit.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Source of data -- Original-techn. papers.

Model page created by Pius Steiner. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4975 models, 4166 with images and 3322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: RCL Meter PM6303
Threads: 1 | Posts: 2
Hits: 1946     Replies: 1
philips: PM6303; RCL Meter
Antonio Marra
30.Sep.13
  1

I have uploades my model of PM6503 to the existing model page,in which the model is listed to Philips Netherlands.Now (see my label) mine has been manufactured by Philip Industrial & Electro.acoustic Systems W.Germany. So either the same model has been manufactured in two countries or the model page is wrong.

Pius Steiner
01.Oct.13
  2

Thanks, You are right, Mr. Marra. Also my unit was produced by:
Philips Industrial & Electro-acoustic Systems W.Germany

Dieser Philips Betrieb scheint im RM noch nicht zur Verfügung zu stehen. Kann ich das selber erledigen oder wird dies durch einen Admin erledigt?

Vielen Dank
Pius
