Rembrandt - L D24T937 D 24 T 937 Ch=D6N
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1970
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 103304
-
- Brand: Deutsche Philips-Ges.

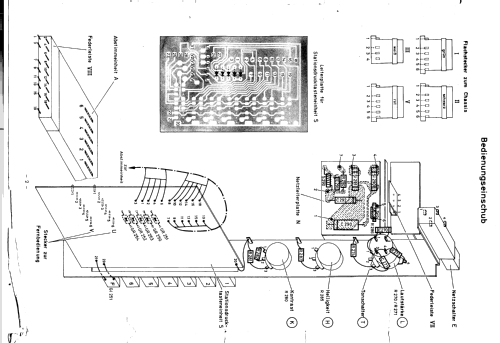

Der Platinen-Print des Gerätes.
Das Typenschild.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rembrandt - L D24T937 D 24 T 937 Ch=D6N - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 660 x 500 x 410 mm / 26 x 19.7 x 16.1 inch
- Notes
- 28 Dioden, 1 IC. Bereiche VHF und UHF (Kanäle 2 bis 69). 24 Zoll SW-Gerät.
- External source of data
- Orginal Philips Doku
- Author
- Model page created by Franz Born †. See "Data change" for further contributors.
