RK57 EL3555
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966/1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 26669
-
- Brand: Deutsche Philips-Ges.

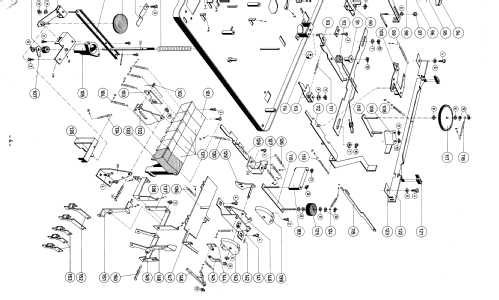

Bild aus Servicedoku.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RK57 EL3555 - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 215 x 340 mm / 17.3 x 8.5 x 13.4 inch
- Notes
- Vierspur-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø 18 cm.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 2540 models, 2252 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Radios - Deutschland
Forum contributions about this model: Philips Radios -: RK57 EL3555
Threads: 1 | Posts: 2
Das Foto zeigt kein Philips RK57, sondern ein Philips RK37. Das RK37 war volltransistorisiert.
Frank Stegmeier
Frank Stegmeier, 10.Nov.10
