Romanza 750A; Philips - Schweiz (ID = 27194) Radio

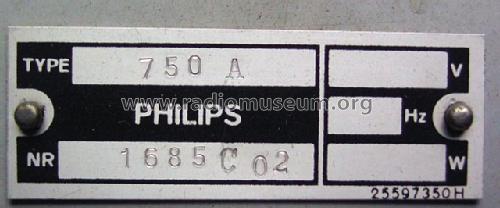

Philips - Schweiz: Romanza 750A [Radio] ID = 27194 500x345
Select picture or schematic to display from thumbnails on the right and click for download.
For model Romanza 750A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EBL1 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Romanza 750A - Philips - Schweiz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 535 x 360 x 270 mm / 21.1 x 14.2 x 10.6 inch
Notes

var.BBr.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 430.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Literature/Schematics (3) Philips Folder for 1938.


All listed radios etc. from Philips - Schweiz
Here you find 287 models, 210 with images and 213 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips - Schweiz: Romanza 750A
Threads: 1 | Posts: 5
Hits: 3282     Replies: 4
philips: 750A; Romanza
Mario Coelho
16.Mar.07
  1

Dear Radiofriends,

I'm writing because I've here one Philips 750A.
I’m trying to restore it ,but several components are missing.


Maybe You have one 750A and You can help me taking a picture from the chassis' bottom or from the chassis's upside, to let me see how those components are  like.


Do You be so kind to help me?
Thank You in advance.


Mário Coelho

Maitiu Standun
16.Mar.07
  2

hello mario, my first reaction to ur project is to suggest u look out for a more complete version , and use the existing example for parts ,

on closer examination i notice from the radio models page , the rear view shows very little gear on the right hand side , so maybe not all that much is missing after all .

i notice u have the valve nos' marked on the chasis so u must have the valves , the radio model page giv es ek2 ,ef5, ebc3, ebl1, emi, az1. there are also alternatives listed incase u need replacements. i presume u also have the cabinet and back board ,hope ive been of some service to u , and good look with ur restoration, regards Maitiu,



Mario Coelho
17.Mar.07
  3

Hi Dear Maitiu,

Thank You for your prompt reply.

Yes. An out-put transf. is missing. I've to built one. But,

There are also some disconnected wires.

Some components are missing in chassis below.

That's why I need to see a magnified photo  in detail.

Best Regards

Mário Coelho





Maitiu Standun
17.Mar.07
  4 hello mario, u can assertain from the schematics available on the radio model page , , if u have difficulty , im sure some of our collegues will come forward with advice , if i can help u know im here , regards maitiu,
Giordano De Vita
04.Jun.12
  5

caro amico

ti invio la scheda tecnica del tuo apparecchio nella speranza che possa essererti utile.

giordano

Attachments


Philips - Schweiz: Romanza 750A
End of forum contributions about this model
