• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 127547

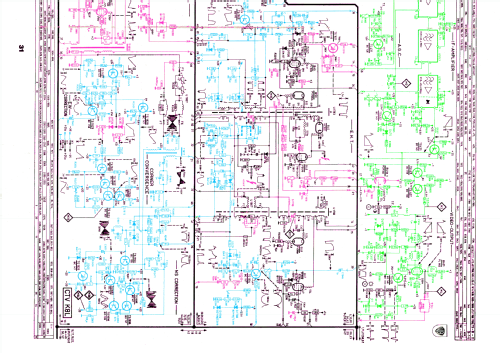

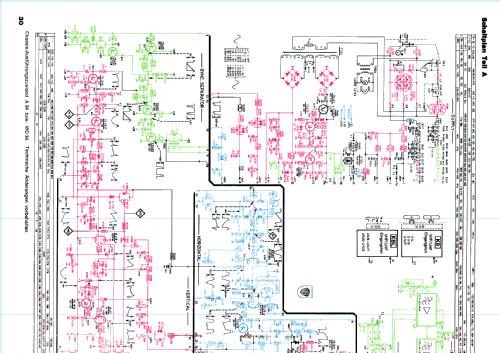

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• GY501 PD510 PL509 PY500A PL509 PY500A PL802 PCL86 PCF200 PCF200 PCF200 PCF802 PCF80 PL508 A66-140X

• Number of Transistors
• 64

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Royal Color 110 X26K171 /00 /05 Ch= K8-110° - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 741 x 495 x 439 mm / 29.2 x 19.5 x 17.3 inch

• Notes
• 66cm Rechteckbildröhre.
  VHF + UHF.
  2 Ausführungen: /00 = dunkel-hochglanz; /05 = Nuß matt.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Price in first year of sale
• 21,900.00 ATS

• Literature/Schematics (1)

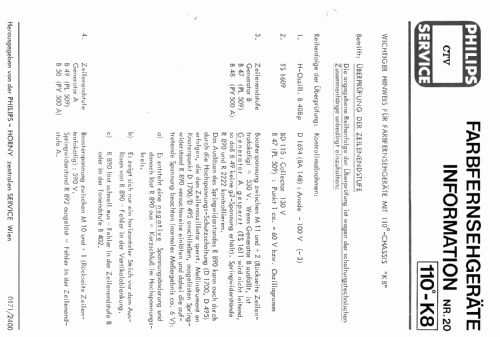

• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
