Sampling Oscilloscope PM3400 /01 /02 /04 /05 /06

• Country
• Sweden

• Manufacturer / Brand
• Philips, Svenska AB, Stockholm

• Year
• 1970–1976

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 216011

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D14-120GR/37

• Number of Transistors
• 134

• Semiconductors
• BFW92 BSX20 BC177 2N709 BC107 2N3905 BF183 BFS21 BCY70 BF179 BSY34 BFY50 2N3055 2N2484 BSW67 BFW10 BF115 TD253 BZY88 BAX13 BAY82 unknown_diode 5082-2800 1N3718 BY126 BY176 BA148

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Sampling Oscilloscope PM3400 /01 /02 /04 /05 /06 - Philips, Svenska AB, Stockholm

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 240 x 530 mm / 12.6 x 9.4 x 20.9 inch

• Notes

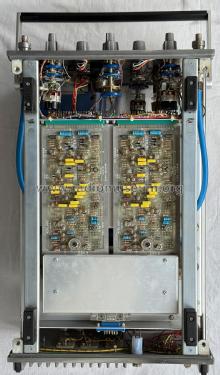

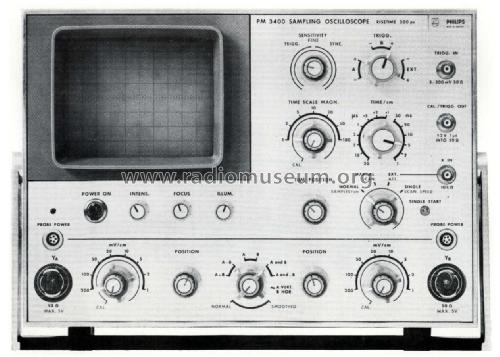

• Philips dual trace Sampling Oscilloscope PM3400;

  Bandwidth: DC to 1.7 GHz
  Risetime: 200 ps ± 10%
  Input Impedance: 50 Ω
  Input connector: GR874
  Sensitivity: 1 mV/cm...200 mV/cm in 8 calibrated steps
  Signal range: DC up to ± 1.6 V without distortion, ±2 V at 200 mV/cm
  Max. input voltage: ± 5V DC
  Time base: 20 µs/cm...1 ns/cm in 14 calibrated steps
  Trigger mode: triggerd or synchronized
  Display: 8 x 10 cm, long persistence.

  Solid state devices listed once per type. For a ultra low leakage planar silicon diode type SE708 (sampling amplifier, not listed) no data available yet.
  Transistor BSY34 is used as avalanche driver in the sampling pulse generator for a step recovery diode of unknown type.

  Pricing as of 1976

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 11,600.00 DM

• Mentioned in
• Funk-Technik (FT) (20/1973, S. 765 - 767 / Beschreibung, Blockschema)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Operation and Service Manual)

• Literature/Schematics (2)
• - - Manufacturers Literature (Philips electronic measurement and microwave notes 1970/2 p.13-27)

• Literature/Schematics (3)
• - - Manufacturers Literature (Philips Messgeräte-Katalog 1976)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
