• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1939 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 331719

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF8 ECH3 EF9 EBC3 EM1 EL3 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

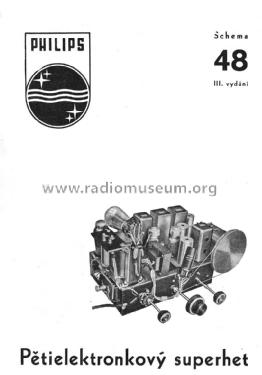

• Model: Schema 48 - Philips akc. spol., Praha-

• Shape
• Chassis only or for «building in»

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
