• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 219789

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 ECC83 ECC83 ELL80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 6 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: SM9900 /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 395 x 310 x 250 mm / 15.6 x 12.2 x 9.8 inch

• Notes

• Tape reproducer for continuous playback in commercial environments.

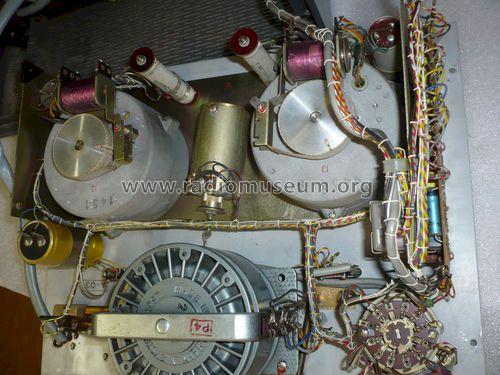

  Three motors, reel diameter 18 cm.
  Auto-reverse function with tape ends fixed on the reels.

  Sticker "Made in Holland".

  There is also a smiliar device ScanMovic C401S, made in Denmark (with e.g. Swedish capacitors and relays made by Movic).

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Mentioned in
• Funk-Technik (FT) (23/1969, S. 900, 901 / Beschreibung, Teilschema)
