Sonate Plano BDK494A

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552890) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552891) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552892) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552893) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552894) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552895) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552896) Radio

Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552897) Radio
Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552856) Radio
Use red slider bar for more.
Sonate Plano BDK494A; Philips Radio A/S; K (ID = 1552856) Radio
Philips Radio A/S; K: Sonate Plano BDK494A [Radio] ID = 1552856 900x435
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonate Plano BDK494A, Philips Radio A/S; København:

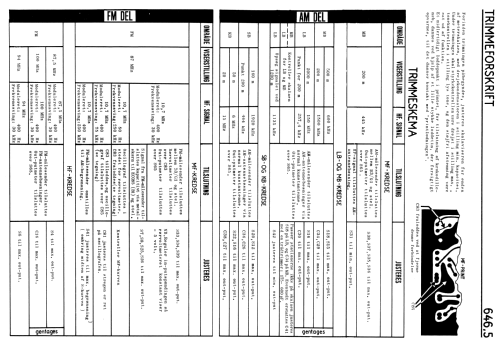

Aus Service-Manual

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 EF89 ECH81 EBF89 EM84 ECL82
Main principle Superheterodyne (common); ZF/IF 445/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sonate Plano BDK494A - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 628 x 218 x 248 mm / 24.7 x 8.6 x 9.8 inch
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
