• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1967/1968

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 79639

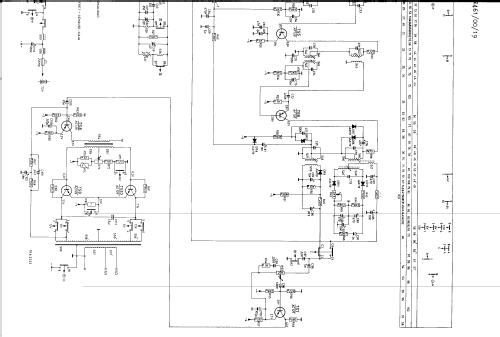

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF102 AF124 AF185 AF126 AF126 AF126 AC125 AC128 AD139 AD139 BA100 AA119 BA102 Diode_Zener

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Spyder 22RN461 /19 - Philips - Österreich

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 54 x 181 mm / 6.9 x 2.1 x 7.1 inch

• Notes
• • AM radio:
    • LW: 150 - 400 kHz.
    • BC: 512 - 1612 kHz.
  • FM radio with AFC: 87.5 - 104 MHz.
  • Amplifier: 1 x 3 Watt.
  • Power supply can be set with switches for:
    • 6V (negative or positive to earth)
    • 12V (negative or positive to earth)
  • Contains diodes: 1 x BA100, 8 x AA119, 1 x BA102, 1 x BZ100, 1 philips code.
  • There is also an variant model 22RN461 /00 with I.F.=452 KHz.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
