• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1976

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 79633

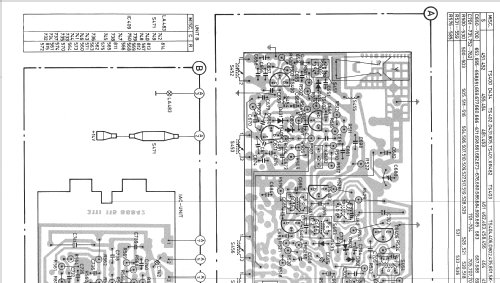

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF494 BF494 BF240 BF495 BF494 BF495 BF494 BF495 BC548 TDA1001

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Spyder 463 22AN463 - Philips - Österreich

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 43 x 110 mm / 7.1 x 1.7 x 4.3 inch

• Notes
• 2 Ausführungen: ../89 und ../19:
  Vorwahltasten 2 × MW, 4 × UKW, 2 IC's.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• Dániel József, Autórádiók szervizkönyve, Bp. 1988.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
