• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1976–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 80814

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

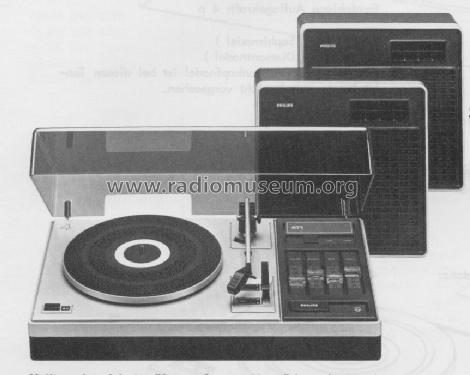

• Model: Stereo-Electrophon AF471 22AF471 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 140 x 300 mm / 19.7 x 5.5 x 11.8 inch

• Notes
• Stereo-Kombination mit eingebautem Plattenspieler für 33/45 UpM und Stereo-Verstärker mit 2× 12 W (Musik) Ausgangsleistung.

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Source of data
• Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
