Stereo Amplifier 06AH325

Philips do Brasil S.A.

  • Year
  • 1985 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 295543

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 64 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Amplifier 06AH325 - Philips do Brasil S.A.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 87 x 363 mm / 16.5 x 3.4 x 14.3 inch
  • Notes
  • By mid 80´s modular hifi - also called "separates" - were a hit in Brazilian market, in spite of they high price. In an attempt to make this concept more accessible, thereby increasing its market share, Philips' commercial department briefed the local audio lab (at the time in Piracicaba city) to develop some families of modular sets with low cost and basic specifications. These families were composed by the following models:

    06AH621 and 06AH625 = Receivers
    06AH325 = Stereo amplifier
    06AH125 = Tuner
    06AW620, 06AW622 and 06AW721 = Cassette record/players
    06AF294 = Turntable

    Dedicated speaker boxes for each family and and a wood rack

    06AH325 STEREO AMPLIFIER

    Output power = 2x 32W rms @ 1% THD 8 Ohms load
    Frequency response = 30 Hz to 20 kHz (- 3 dB)
    Sensitivity:       Mic = 5 mV / 3K Ohms
                            Aux = 280 mV / 1M Ohms
                            Phono  (for moving magnetic cartridge) = 6 mV / 47K Ohms
                            Tape = 200 mV / 1M Ohms

    Controls = Bass + - 10 dB @ 100 Hz; treble + - 10 dB @ 10 kHz;
    Loudness = + 7dB @ 100 Hz and 10 kHz
    High cut filter = - 12dB @ 7 kHz
    Aux tape output = 500mV / 6K Ohms

    Recommended speaker box: Philips type 06AH425

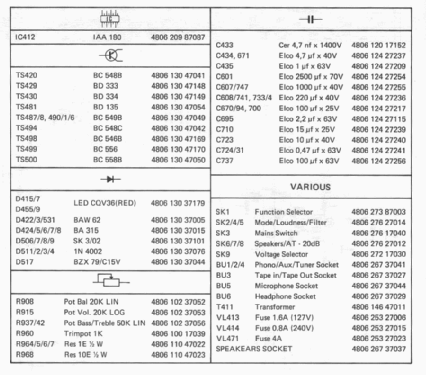

    Semiconductors mentioned once per type.

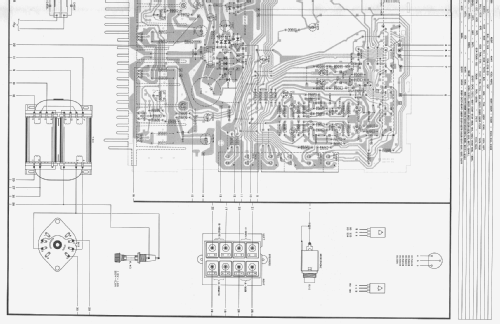

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
