Stereo-Cassetten-Wechsler N2408 /00 /15 /19

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1974–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29448

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

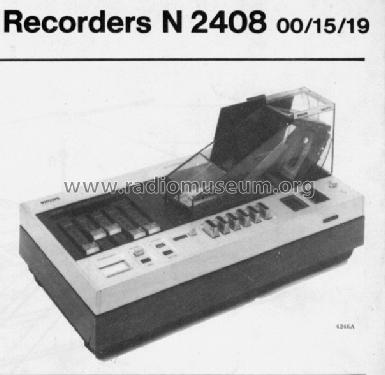

• Model: Stereo-Cassetten-Wechsler N2408 [/00 /15 /19] - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 120 x 235 mm / 19 x 4.7 x 9.3 inch

• Notes
• Philips Cassettenwechsler N2408.
  Ausgangsleistung: 2× 10 W (Sinus); Frequenzbereich: 60···12000 Hz mit CrO₂-Band, 60···10000 Hz mit Fe₂O₃-Band; eingebaute DNL-Schaltung; Cassettenwechselsystem für 6 Compact-Cassetten
  4 Ausführungen: /00, /15, /19.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1975/1976 (und 1976/77)

• Literature/Schematics (1)
• -- Original-techn. papers.
