Cubic Compo Stereo Radio Cassette Recorder D8254/00

Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395430) Radio
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2385738) Radio Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395431) Radio
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2385740) Radio Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 1505346) Radio
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2385739) Radio Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395287) Radio
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395288) Radio Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395289) Radio
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395291) Radio Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2395292) Radio
Use red slider bar for more.
Cubic Compo Stereo Radio Cassette Recorder D8254/00; Philips - Österreich (ID = 2385738) Radio
Philips - Österreich: Cubic Compo Stereo Radio Cassette Recorder D8254/00 [Radio] ID = 2385738 1100x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cubic Compo Stereo Radio Cassette Recorder D8254/00, Philips - Österreich:
Bild aus osta-ee-122423642

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player

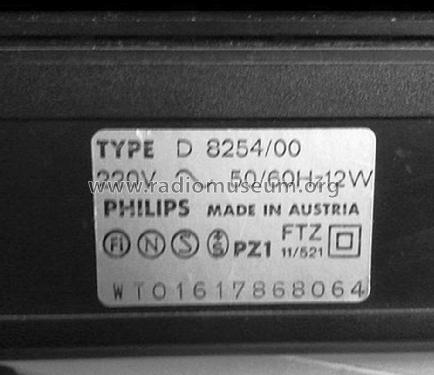

Power type and voltage Line / Batteries (any type) / 220 / C: 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 10 W (max.)
from Radiomuseum.org Model: Cubic Compo Stereo Radio Cassette Recorder D8254/00 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 155 x 160 mm / 10.6 x 6.1 x 6.3 inch
Notes

Philips Portable Stereo Radio Cassette Player/Recorder (Boombox) Model D8254/00.
Tuning Range: FM 87,5 - 108 MHz, AM 520 - 1605 kHz
SW 5,95 - 17,9 MHz, LW 150 - 255 kHz.
Servo Control Tape Transport Mechanism.
Carrying Handle, Telescopic antenna.
Detachable Speakers.
Power Consumption 12 Watts.
Made in Austria

Mentioned in - - Manufacturers Literature (Philips Katalog 1985)

Model page created by Franz Scharner. See "Data change" for further contributors.
