• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1986 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164136

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC1674 2SA838 2SC1675 BC548 BC559 BC548 BC337 BC559 BC548 BC548 TEA5570 BA1332 AN7312 TA7769

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 50-60 Hz, 240 / D: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

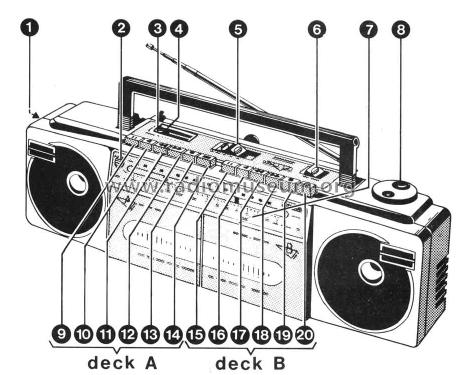

• Model: Moving Sound Stereo Radio Recorder D8078 /05L /05R - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• For United Kingdom

  D8078 /05L: Red
  D8078 /05R: Black

  See also D8078 /00L /00R (Europe)

• Literature/Schematics (1)
• -- Original-techn. papers. (Service Manual 4822 725 21137)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
