Two-Unit Stereophonic 215A
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1959–1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266285

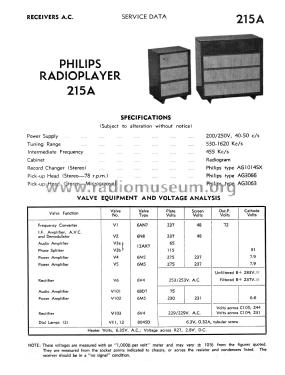

From service manual cover.
Service manual cover.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Two-Unit Stereophonic 215A - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

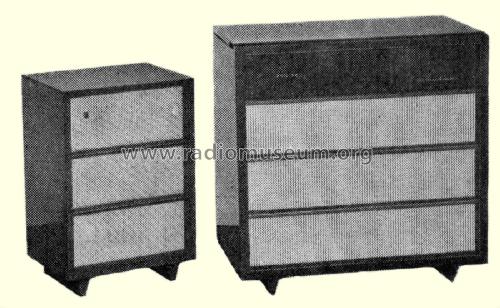

Philips 215 Stereo Radiogram
A two-unit 9 valve B/C radiogram with four-speed automatic record changer (AG1014SX) for stereophonic or monaural reproduction. The matching extension speaker and console cabinet are finished in walnut or maple. Features: Philips push-button record changer has "featherweight" pick-up with two interchangeable high-fidelity stereo or monaural heads, types AG3063 and AG3066. Two amplifiers with 3 watt output from each. Speaker: main console - one 12" and one special 5". Extension speaker - one special 8". (FROM MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 166.95 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1959 to Aug 1961.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips service data sheets for model 215A, June 1959.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P40.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
