Super inductance 638A

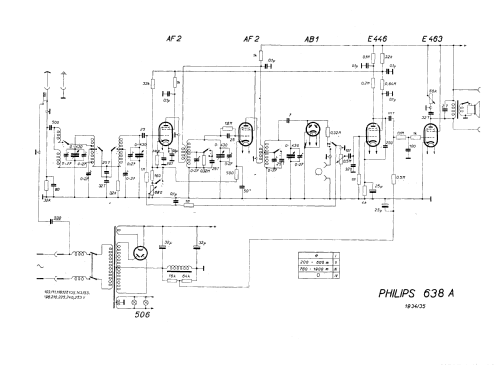

Super inductance 638A; Philips Belgium (ID = 2443910) Radio
Super inductance 638A; Philips Belgium (ID = 348907) Radio Super inductance 638A; Philips Belgium (ID = 348909) Radio
Super inductance 638A; Philips Belgium (ID = 348908) Radio Super inductance 638A; Philips Belgium (ID = 348910) Radio
Super inductance 638A; Philips Belgium (ID = 348911) Radio Super inductance 638A; Philips Belgium (ID = 348912) Radio
Super inductance 638A; Philips Belgium (ID = 1055249) Radio Super inductance 638A; Philips Belgium (ID = 1055250) Radio
Super inductance 638A; Philips Belgium (ID = 1055251) Radio Super inductance 638A; Philips Belgium (ID = 1055252) Radio
Use red slider bar for more.
Super inductance 638A; Philips Belgium (ID = 348907) Radio
Philips Belgium: Super inductance 638A [Radio] ID = 348907 608x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super inductance 638A, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF2 AF2 AB1 E446 E463 506 or 1823
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super inductance 638A - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 385 x 470 x 234 mm / 15.2 x 18.5 x 9.2 inch
Notes Super-Inductive-Prinzip
Collectors' prices

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 328 models, 306 with images and 165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
