S/W Fernsehempfänger Chassis Ch= D6V
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 310458
-
- Brand: Deutsche Philips-Ges.

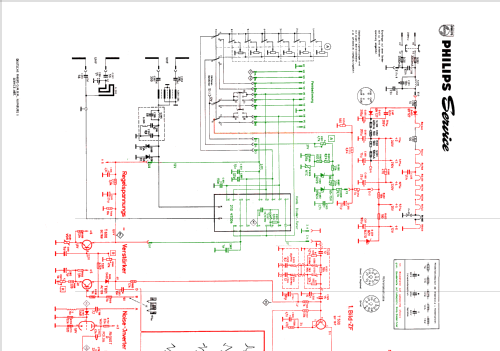

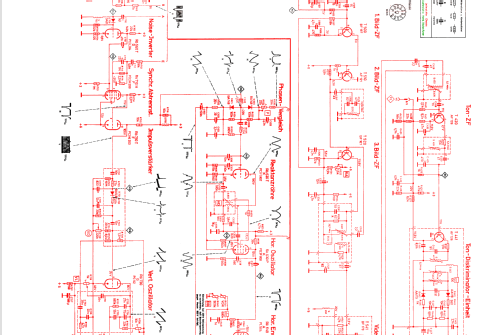

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: S/W Fernsehempfänger Chassis Ch= D6V - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Chassis D6V mit Varicap Diodentuner, abweichend zum Chassis D6N ist der Tuner auf einer separaten Platine montiert, ähnlich wie beim Chassis K6N bzw K7N.
Kanalwähler (TV Tuner) Type KD1 (4812 210 47004)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Holger Ortmann. See "Data change" for further contributors.
