Szuper Triumph 1750

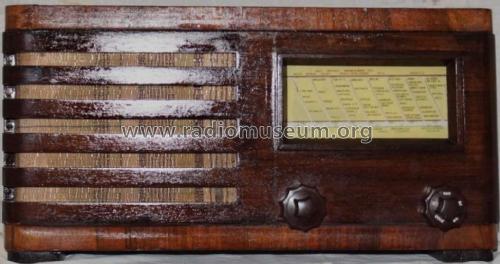

Szuper Triumph 1750; Philips; Budapest (ID = 234376) Radio
Szuper Triumph 1750; Philips; Budapest (ID = 2193141) Radio Szuper Triumph 1750; Philips; Budapest (ID = 2193144) Radio
Szuper Triumph 1750; Philips; Budapest (ID = 381212) Radio Szuper Triumph 1750; Philips; Budapest (ID = 234873) Radio
Szuper Triumph 1750; Philips; Budapest (ID = 733493) Radio Szuper Triumph 1750; Philips; Budapest (ID = 1306936) Radio
Szuper Triumph 1750; Philips; Budapest (ID = 2193142) Radio Szuper Triumph 1750; Philips; Budapest (ID = 2193143) Radio
Szuper Triumph 1750; Philips; Budapest (ID = 2193145) Radio Szuper Triumph 1750; Philips; Budapest (ID = 2193146) Radio
Use red slider bar for more.
Szuper Triumph 1750; Philips; Budapest (ID = 2193141) Radio
Philips; Budapest: Szuper Triumph 1750 [Radio] ID = 2193141 947x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Szuper Triumph 1750, Philips; Budapest:
Thanks for Mr.Gyulai Ferenc, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner

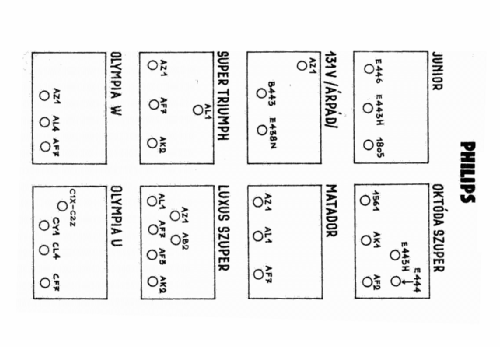

Valves / Tubes 4: AK2 AF7 AL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Szuper Triumph 1750 - Philips; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 255 x 230 mm / 19.7 x 10 x 9.1 inch
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 328.00 Pengő
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
