Téléviseur Couleur MultiStandard X26K221 /00 /16 /29 /66 Ch= KM1L; Philips; Eindhoven (ID = 2120949) Television
Philips; Eindhoven: Téléviseur Couleur MultiStandard X26K221 /00 /16 /29 /66 Ch= KM1L [Television] ID = 2120949 1400x875

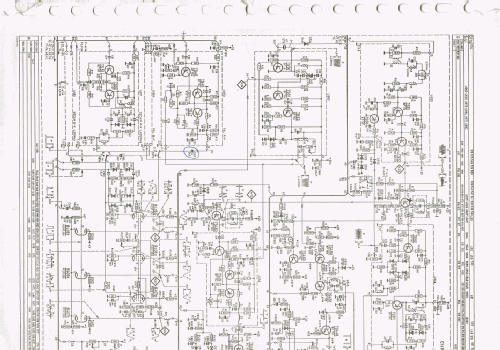

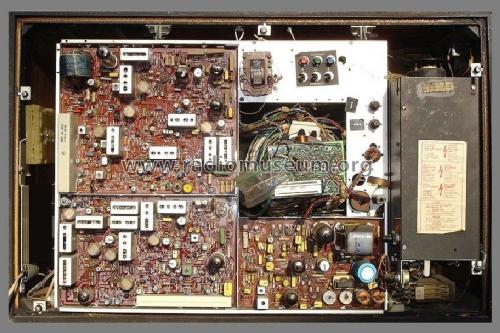

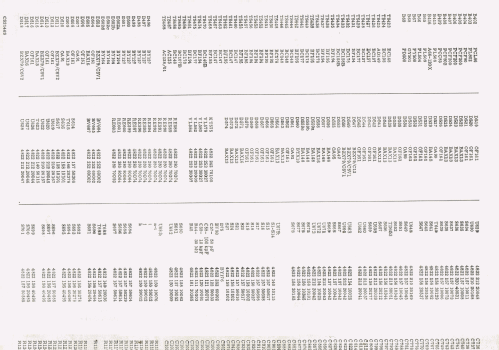

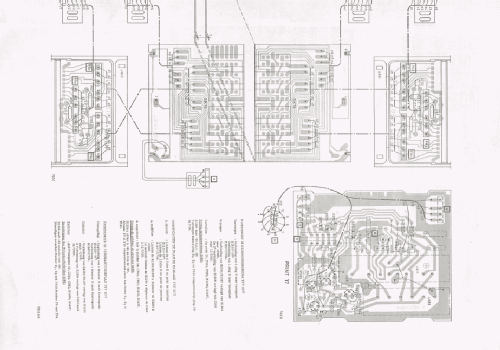

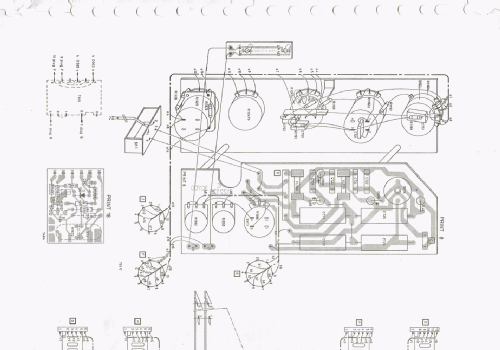

Select picture or schematic to display from thumbnails on the right and click for download.
For model Téléviseur Couleur MultiStandard X26K221 /00 /16 /29 /66 Ch= KM1L, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1972/1973 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCF80 PL802 PCL86 PCF200 PCF200 PCF200 PCF802 PCC85 PL508 PD510 GY501 PL519 PL504 PY500 A66-120X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 4 W (undistorted)
from Radiomuseum.org Model: Téléviseur Couleur MultiStandard X26K221 /00 /16 /29 /66 Ch= KM1L - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 780 x 540 x 600 mm / 30.7 x 21.3 x 23.6 inch
Notes

Multistandard PAL/Secam hybrid color TV with 66cm 90° tube.

Channel preselection using varicap tuning with 12 pushbuttons with indication lamp. 2 drawers of 6 potentiometers and switches are used for preselection. Each channel can be set for a PAL or Secam transmission and reception system with the selectors on the back of the TV.

The controls for the dynamic convergence are behind two covers on the front.

Execution numbers /16, /29 and /66 have minor differences depending on the destination market.

Net weight (2.2 lb = 1 kg) 52 kg / 114 lb 8.6 oz (114.537 lb)
Price in first year of sale 6'290.00 FF
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Patrice Schoser. See "Data change" for further contributors.
