• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 89325

• • Brand: Deutsche Philips-Ges.

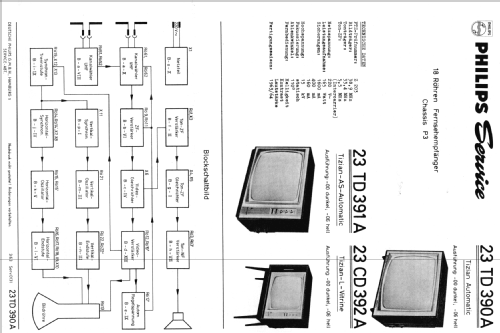

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL86 PCL84 ECH84 ECH84 PCF802 PF86 PCL85 PL500 PY88 DY86 AW59-91

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tizian-AS-Automatic 23TD391A Ch= P3 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 710 x 520 x 400 mm / 28 x 20.5 x 15.7 inch

• Notes
• Varianten: 00= dunkel, 06= hell, Frequenzbänder: VHF I und III, UHF IV und V.

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 1,158.00 DM

• Mentioned in
• - - Manufacturers Literature (Philips Sammel-Preisliste 1963/64)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
