• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99280

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PC900 PCF801 EF183 EF184 PCL84 PCH200 PCH200 PCF802 PL500 PY88 DY86 PF86 PCL85 EF184 PCL86 A59-11W

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF121 OA70 OA81 OA91 BA100 BY100

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

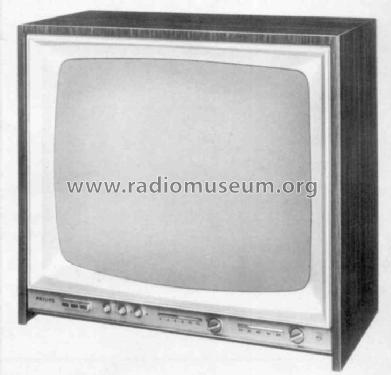

• Model: Tizian Luxus 23TD400A /00 /06 Ch= D5 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 520 x 400 mm / 23.2 x 20.5 x 15.7 inch

• Notes

• Röhren teilweise mehrfach vorhanden. VHF-Kanäle 2 - 12, UHF-Kanäle 21 - 69.

  Ausführungen: -00  dunkel, -06  hell
  - UHF Kanalwähler mit Transistoren, Typ A3 687 70 (AT 6380) HA 362 58
  - VHF Kanalwähler mit Röhren, Typ 3112 108 54070 (NT 5703)
  - Fernbedienung Typ 60 KR 357 59 oder Typ 63 NT1162

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (4)
• Philips Preisl. 1964

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
