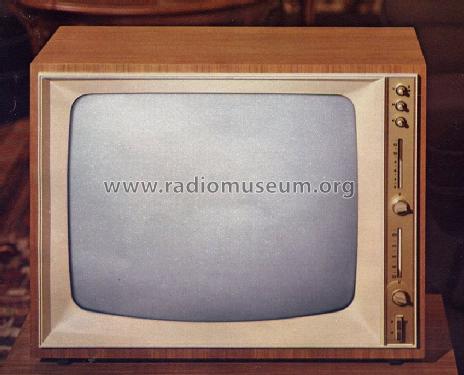

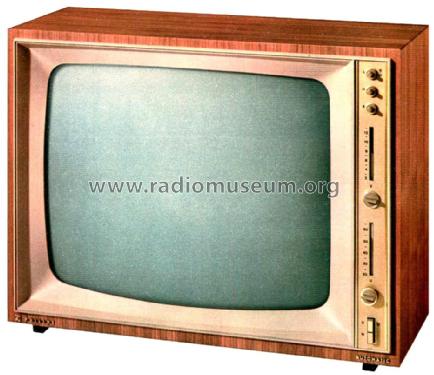

Tizian Luxus 23TD403A /00 /06 Ch= D5
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1964/1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111750
-
- Brand: Deutsche Philips-Ges.
Prospekt: Philips Fernsehgeräte 65/66
Q: Philips, Produkt-Katalog '65
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- PC900 PCF801 EF183 EF184 PCL84 PCH200 PF86 PCL85 PCH200 PCF802 PL500 PY88 DY86 EF184 PCL86 A59-11W
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tizian Luxus 23TD403A /00 /06 Ch= D5 - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 490 x 400 mm / 25.2 x 19.3 x 15.7 inch
- Notes
-
Ausführung: -00 dunkell; -06 hell
VHF-Speichertuner Typ 3112 108 54070. UHF-Tuner volltransistorisiert Typ A3 687 70.
Automatik für Bild- und Zeilensynchronisierung. Leuchtfleckunterdrückung, Bildgrösse stabilisiert, Einschaltbrummsperre, Schwarzwertübertragung, Strahlstrombegrenzung.
Fernbedienung KR 357 59 Typ 60 oder NT 1162 Typ 63.
- Net weight (2.2 lb = 1 kg)
- 28 kg / 61 lb 10.8 oz (61.674 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
