Tongenerator / Toongenerator (Schwebungssummer) GM2308 /05

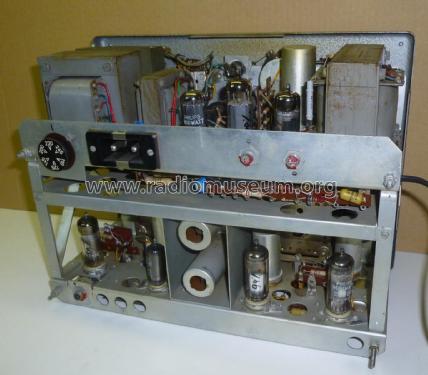

Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2522991) Equipment Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2522992) Equipment
Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2522993) Equipment Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2520578) Equipment
Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2524151) Equipment Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2524152) Equipment
Use red slider bar for more.
Tongenerator / Toongenerator GM2308 /05; Philips; Eindhoven (ID = 2522991) Equipment
Philips; Eindhoven: Tongenerator / Toongenerator GM2308 /05 [Equipment] ID = 2522991 1400x1164
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tongenerator / Toongenerator (Schwebungssummer) GM2308 /05, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964 ? Category: Service- or Lab Equipment
Valves / Tubes 7: EBF89 EBF89 EBF89 ECH81 EL84 EM34 EZ80 85A2
schematic requested
Details

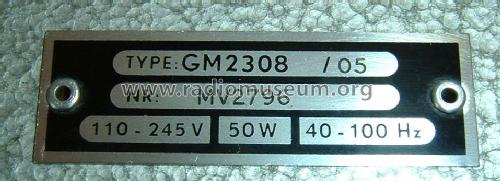

Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Tongenerator / Toongenerator GM2308 /05 - Philips; Eindhoven tubes
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 270 x 200 mm / 13.4 x 10.6 x 7.9 inch
Notes

LF-Generator 0-16.000 Hz. Tuning eye EM34 for zero adjust.

Net weight (2.2 lb = 1 kg) 13.3 kg / 29 lb 4.7 oz (29.295 lb)

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
