For model Goldcoaster Transistor 7 226, Philips Australia:
Ebay Seller toallpoints Item 290699509954

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC74 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Goldcoaster Transistor 7 226 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 80 x 40 mm / 5.5 x 3.1 x 1.6 inch
Notes

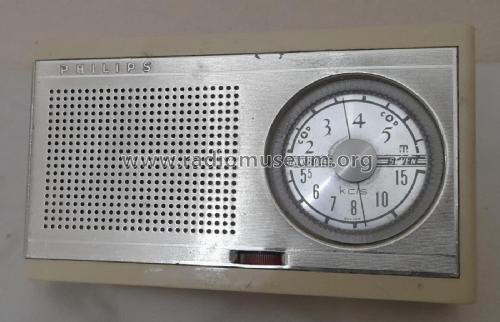

Philips 226 AM Portable Radio, "Transistor 7" labeled on protective cover.
Changeable Local Dial Scales, Flip out stand at the backside, Leather Case.

Colours available in Red/Cream & Charcoal/Cream.

Price in first year of sale 28.35 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data, July 1961.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page P11 & A Series Handbook, Page P5.)

Model page created by Franz Scharner. See "Data change" for further contributors.
