Transistor "Town and Country" 200

Transistor 'Town and Country' 200; Philips Australia (ID = 1635740) Radio

Transistor 'Town and Country' 200; Philips Australia (ID = 1635741) Radio
Transistor 'Town and Country' 200; Philips Australia (ID = 1476281) Radio Transistor 'Town and Country' 200; Philips Australia (ID = 1476282) Radio
Transistor 'Town and Country' 200; Philips Australia (ID = 1476285) Radio Transistor 'Town and Country' 200; Philips Australia (ID = 1476288) Radio
Transistor 'Town and Country' 200; Philips Australia (ID = 1476290) Radio Transistor 'Town and Country' 200; Philips Australia (ID = 1476292) Radio
Transistor 'Town and Country' 200; Philips Australia (ID = 1476294) Radio Transistor 'Town and Country' 200; Philips Australia (ID = 1476296) Radio
Transistor 'Town and Country' 200; Philips Australia (ID = 1476298) Radio Transistor 'Town and Country' 200; Philips Australia (ID = 1476300) Radio
Use red slider bar for more.
Transistor 'Town and Country' 200; Philips Australia (ID = 1476281) Radio
Philips Australia: Transistor "Town and Country" 200 [Radio] ID = 1476281 448x336
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 'Town and Country' 200, Philips Australia:
eBay Item Number: 111101496267

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC169 OC169 OC169 OC71 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: Transistor "Town and Country" 200 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.875 x 5.875 x 3 inch / 225 x 149 x 76 mm
Notes

Philips Model 200 "Town and Country"

Compact battery-operated B/C push-button radio, having seven transistors and one diode. Housed in cabinet of embossed sheet styrene in red, charcoal, beige or grey with simulated leather grain, all with white fronts and gold trim.

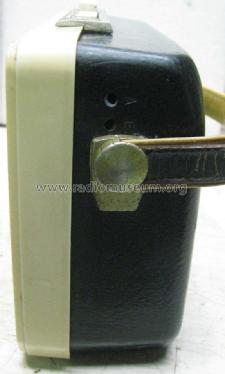

Features: ferrite rod aerial; external aerial connection for car radio use. Printed circuitry with all components numbered for easy servicing. Handle detaches for use as cordless radio. Transistors include new alloy-diffused types for greater sensitivity. Speaker: 5" in special enclosure. Operates from Eveready Type 2364 "Energiser" (9V).

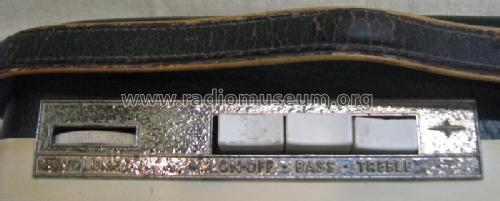

Controls: volume, push-button on/off, two position tone control, vernier tuning. Large clear dial with all Australian stations marked.

Weight is without batteries.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 37.80 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Philips Radioplayer Service Data, June 1961. (Also at KevinChant.com))
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page P9.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page P3.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1962 & Aug 1962.)

Model page created by Daniel Rosha. See "Data change" for further contributors.
