Transistor Seven L0X90T /82D

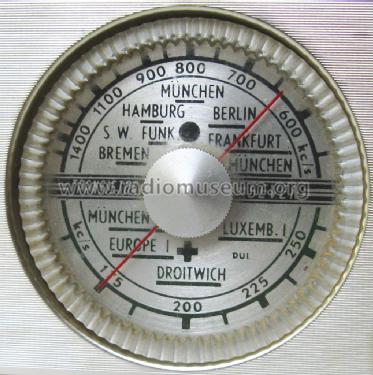

Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580324) Radio Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580327) Radio
Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580325) Radio Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580328) Radio
Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580326) Radio
Use red slider bar for more.
Transistor Seven L0X90T /82D; Philips; Eindhoven (ID = 2580324) Radio
Philips; Eindhoven: Transistor Seven L0X90T /82D [Radio] ID = 2580324 1024x764
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Seven L0X90T /82D, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA85
Main principle Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Transistor Seven L0X90T /82D - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 82 x 32 mm / 5.5 x 3.2 x 1.3 inch
Notes

AM Taschenempfänger mit 2 poligem Stiftanschluss für Ohrhörer links, Bandwahl, Lautstärke/Ein/Aus, Abstimmung frontseitig und Aufstellbügel hinten.

Empfangsbereiche:
LW: 250 - 270kHz,
MW: 510 - 1610kHz.

Net weight (2.2 lb = 1 kg) 0.360 kg / 0 lb 12.7 oz (0.793 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
