• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110822

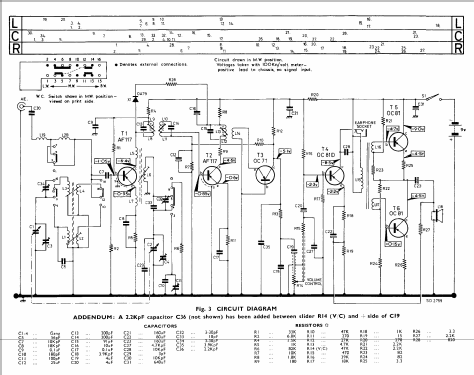

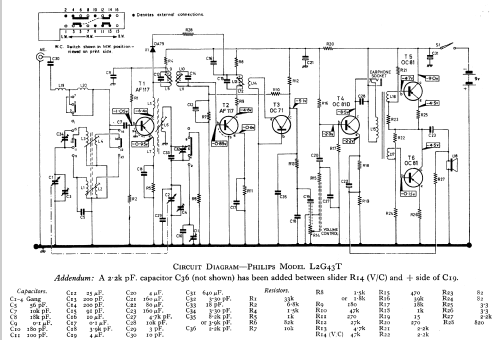

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 OC71 OC81D OC81 OC81 OA79

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Trieste L2G43T - Philips Electrical, Lamps,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.88 x 5.75 x 3 inch / 251 x 146 x 76 mm

• Notes
• Bandspread 180-214 m. Loudspeaker 3 x 5 inch. Sockets for car aerial and earphone.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
