Tube Volt Meter GM100

Tube Volt Meter GM100; Philips, Svenska AB, (ID = 304285) Equipment
Tube Volt Meter GM100; Philips, Svenska AB, (ID = 302888) Equipment Tube Volt Meter GM100; Philips, Svenska AB, (ID = 302889) Equipment

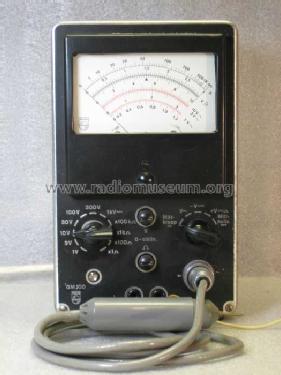

Tube Volt Meter GM100; Philips, Svenska AB, (ID = 302890) Equipment Tube Volt Meter GM100; Philips, Svenska AB, (ID = 387227) Equipment
Use red slider bar for more.
Tube Volt Meter GM100; Philips, Svenska AB, (ID = 302888) Equipment
Philips, Svenska AB,: Tube Volt Meter GM100 [Equipment] ID = 302888 468x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube Volt Meter GM100, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1959 Category: Service- or Lab Equipment
Valves / Tubes 2: EAA91 ECC82
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube Volt Meter GM100 - Philips, Svenska AB, Stockholm
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 142 x 228 x 100 mm / 5.6 x 9 x 3.9 inch
Notes DC Range:0-1, 0-3, 0-10, 0-30, 0-100, 0-300, 0-1000 V ±2,5 %; AC Range:0-1, 0-3, 0-10, 0-30, 0-100, 0-300 V ±3,5 %; Resistance: 1 Ohm - 200 MOhm. Power consumption: 6 W.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Greger Wärnå. See "Data change" for further contributors.
